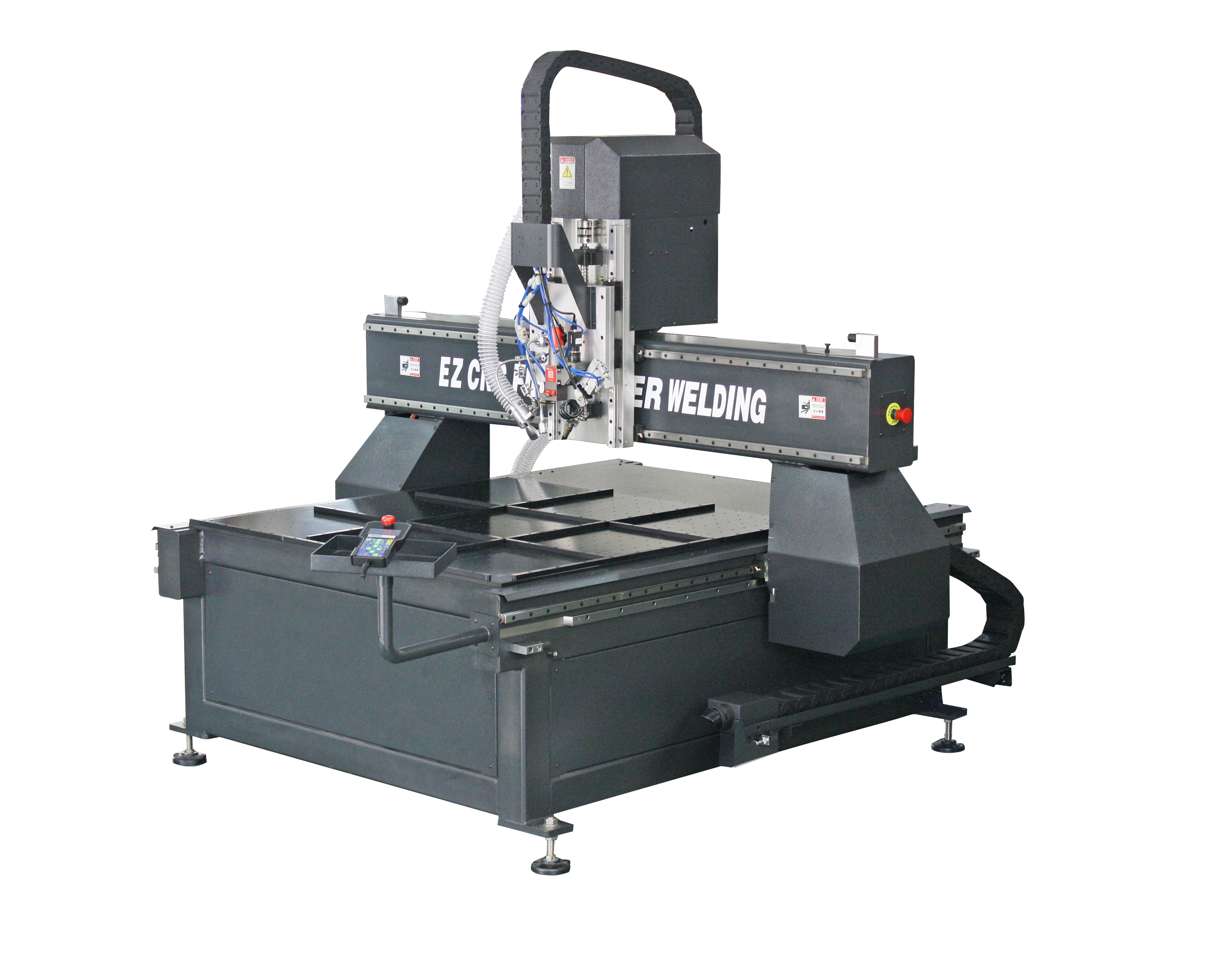

EZCNC Fiber Laser Welding
EZCNC Fiber Laser Welding Machine adopts advanced fiber laser technology and CNC . It provides truly automatic welding. The welding is very accurate and fast. It can weld wide range of materials such as the Stainless steel, Carbon steel, Aluminum and Copper etc.
Product Video
Product Inquiry
Related Products
Product Summary
It provides truly automatic welding. The welding is very accurate and fast. It can weld wide range of materials such as the Stainless steel, Carbon steel, Aluminum and Copper etc.
GW Fiber Laser Source
Welding
Specification
| Model | FW1212 | |
| Physical Parameters | ||
| Table size | 1200*1200mm | |
| Table Zone | 9 | |
| Z Clearnce | 20mm | |
| Welding Speed | 1m/min | |
| Max Speed | 15m/min | |
| WeldingThickness | 0.5~2.0mm | |
| Wedling Gap | ≤0.2mm | |
| Installation Size | 1810×1920×1700mm | |
| Laser source parameters | ||
| Laser Power | 500W/1000W | |
| Laser Wavelength | 1070nm±5% | |
| Laser Welded Joint | ||
| Visual Localization | Two Points Confirm The Position with Visual | |
| Focal Length | 150mm | |
Feature comparison
| Item | EZ Automatic Fiber Laser Machine | Normal Hand-held Fiber Laser Machine |
| Spacing of solder joints | Even, the spacing is controlled by the program | Uneven |
| Location of solder joints | Machine vision positioning, accurately landing on the weld | Human eye positioning, may deviate from the weld |
| Location of focus | auto focus | Manual adjustment |
| Position of welding | Better angular position | The welding tip is aligned, easily interfere with the workpiece |
| Welding efficiency | 7x24 hours continuous work | Artificial influence |
| Cost performance | One machine with multiple functions, equivalent to the functions of multiple machines | Single function |
| Safety | The laser direction is down, which is safer | Laser direction is not fixed, unsafe |
| Fiber | Fixed in the drag chain, not easy to damage | Fiber is easy to break |

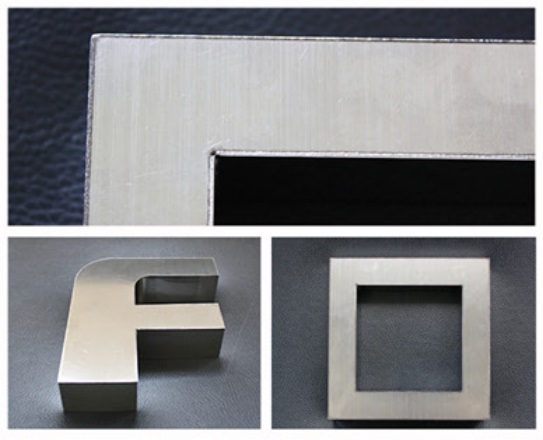

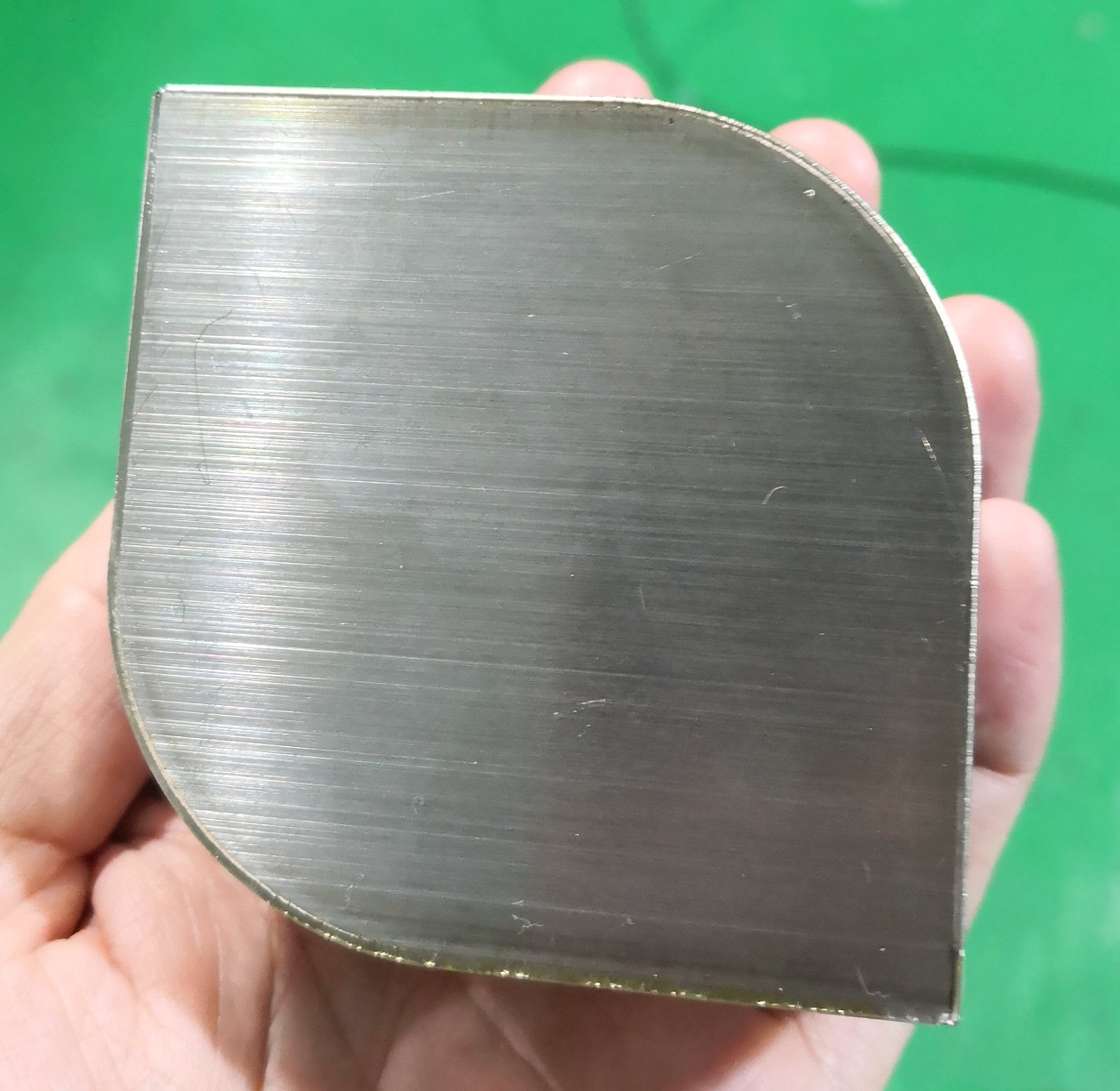

Sample
