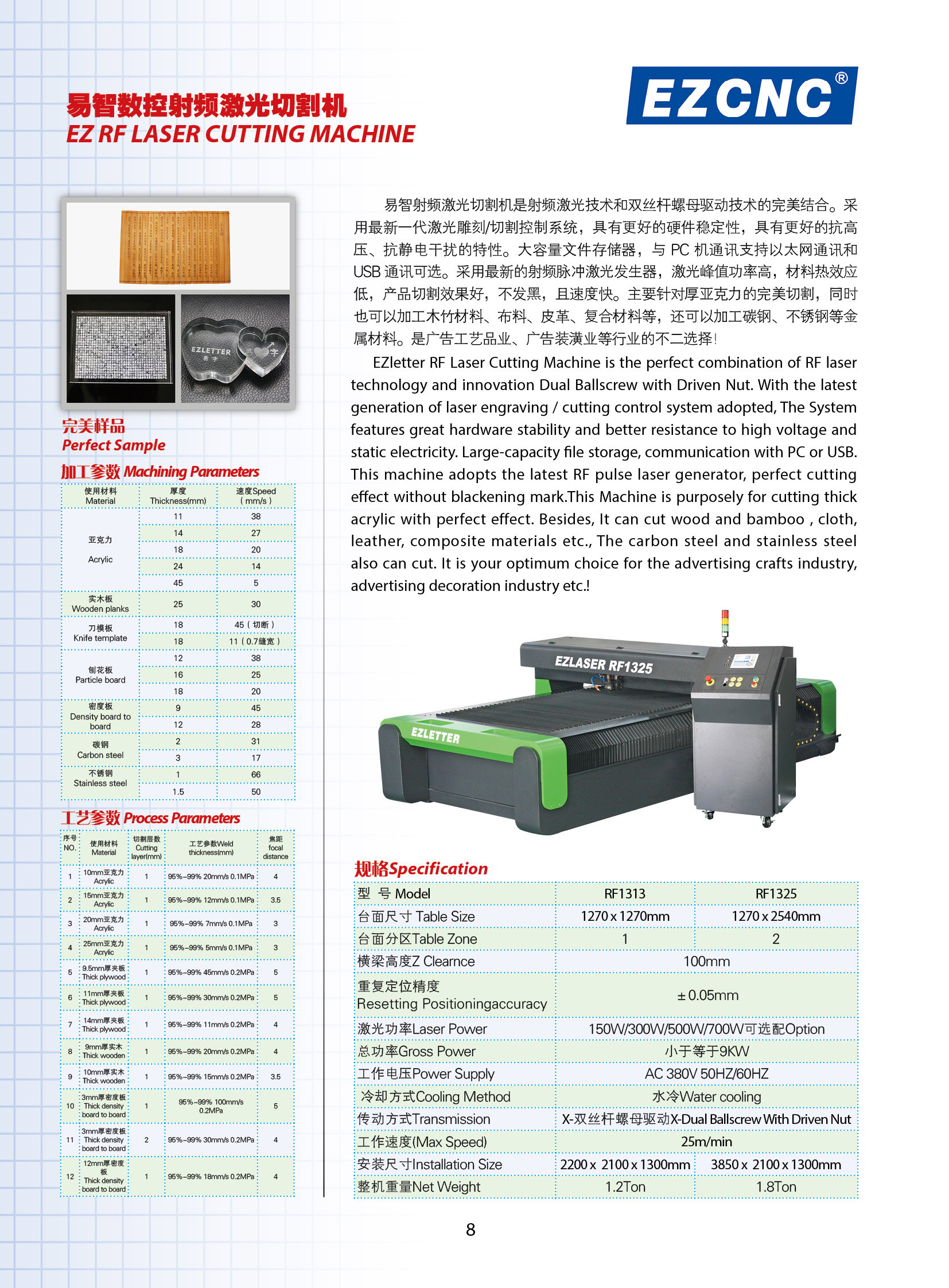

Machine parameters:

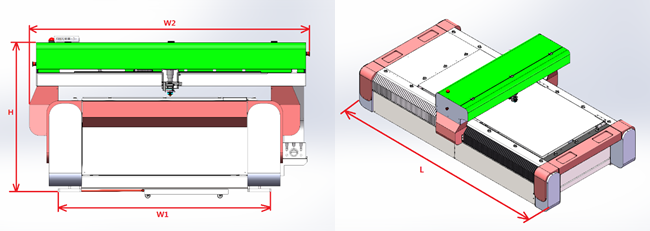

1. Working area: 1270mmX2470mm
2. Laser power: 300W (RF laser)
3. Cooling method: single temperature water cooler + 99.99% nitrogen cooling.
4. Both X and Z adopt shaft screw drive.
5. Unique light path design to reduce power failure.
6. The Y axis is driven by a double screw nut (first domestically)
7. Transmission system: X-axis Yaskawa 400W servo, Y-axis Yaskawa 850W servo, Z-axis Yaskawa 100W servo.
8. Independent partition smoke exhaust system and odor evolution system
9. Unique table top design, bearing capacity up to 500KG.

Technical parameter:
1. 4 motor interfaces, output maximum 400KHZ ; drive capacity 20mA, common anode interface;
2. Onboard 128M non-easy release memory;
3. The maximum USB transfer rate is 12M, and the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear/arc/B-spline interpolation accuracy +/-0.5 pulse;
6. 4 general photoelectric isolation OC gate output, maximum 300mA drive capability (with freewheeling protection), can directly drive 24V/5V DC relay;
7. 4 general optical isolation inputs, compatible with 5V/12V/24V logic level.

Product description:
The RDC6445GZ system is the latest generation of laser engraving/cutting control system. The control system has better hardware stability, and has better anti-high voltage and anti-static characteristics. The man-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more complete and excellent motion control functions, large-capacity file storage, more compatible dual-channel independent adjustable laser power control interface, more compatible U disk driver, multi-channel general/special IO Control, communicate with PC, support Ethernet communication and USB communication, etc. automatically. The controller can support fixed single/dual laser head processing, double-head shifting processing, super-format cutting processing. Its extended model can also support a series of functions such as MARK point visual positioning cutting, large-format panoramic visual cutting, projection cutting, and double-head asynchronous.

Function description:
1. Support up to 4 servo/step motor control;
2. Support 1 extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;
3. Support 4 OC gate outputs, which can directly drive 5V/24 relays;
4. Support mobile APP;
5. Support double-head electric mutual movement control and super-format cutting and cutting;
6. Support double-head asynchronous processing;
7. Support processing methods such as large format vision, mark point vision cutting and projection cutting.
