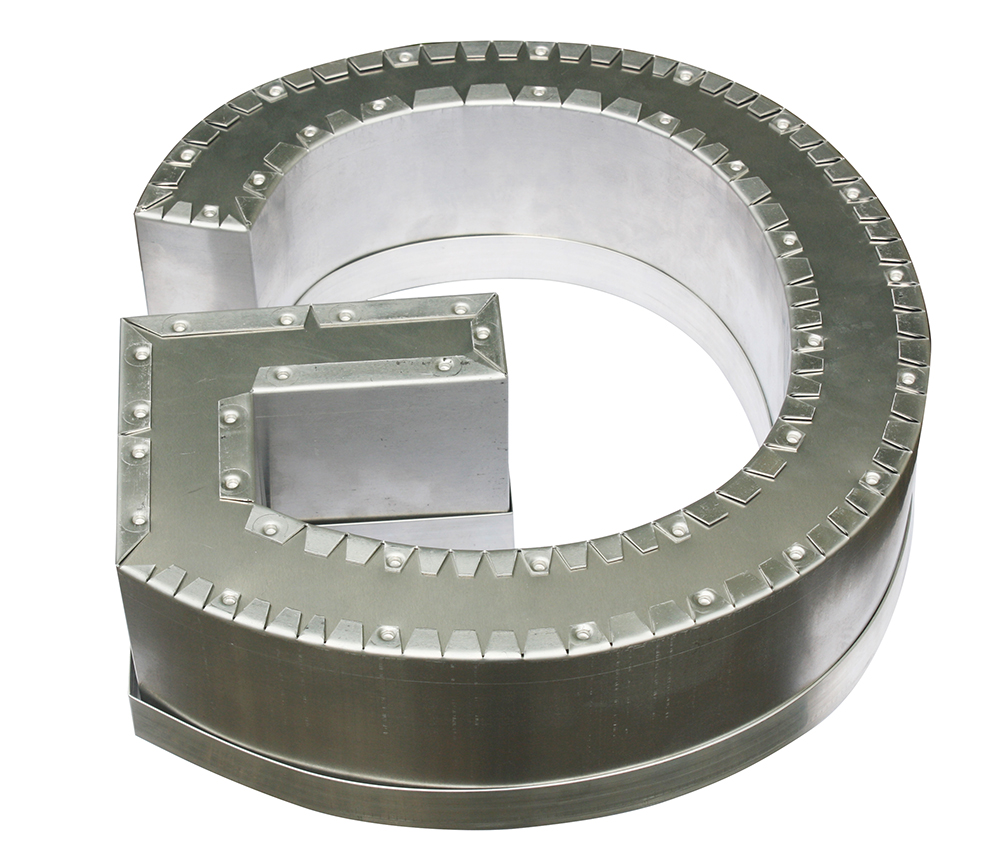

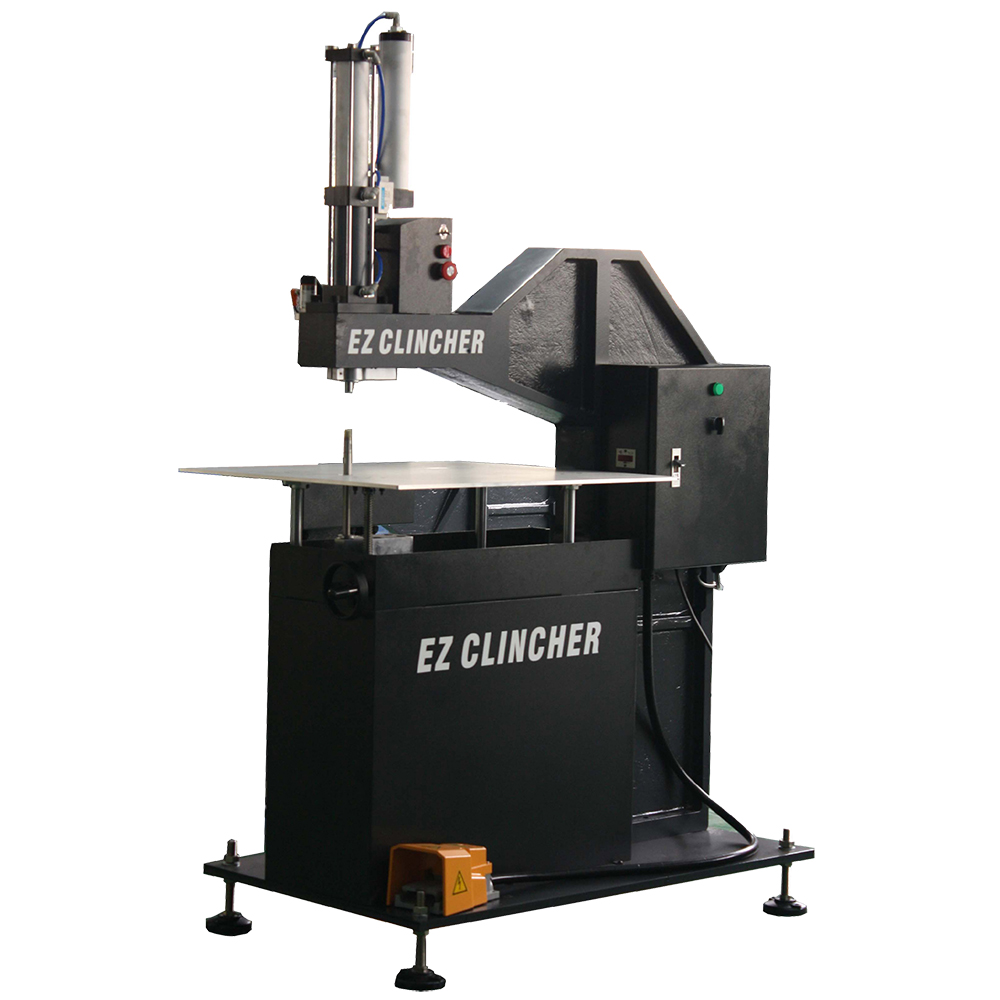

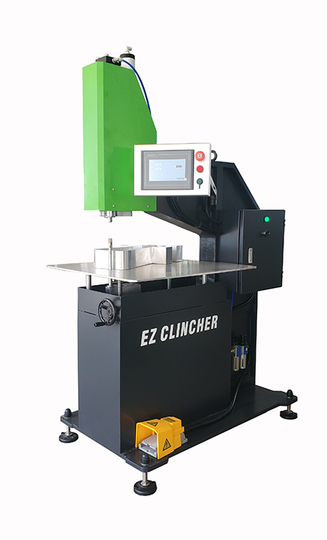

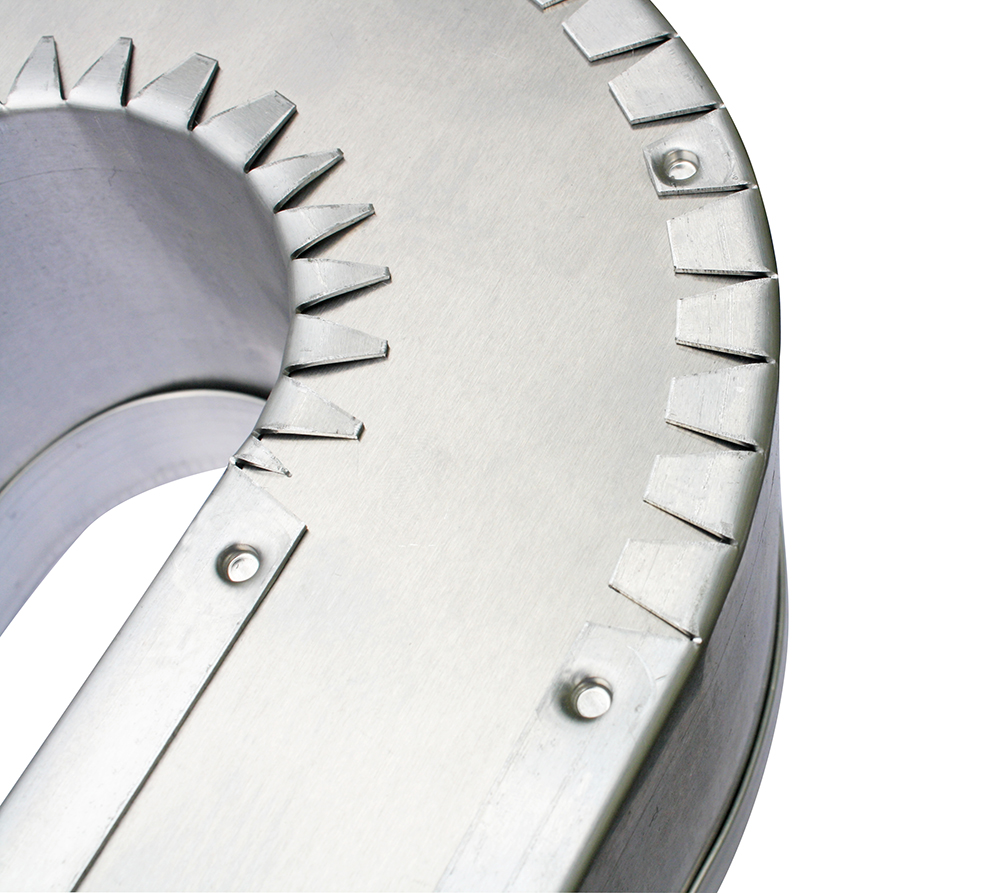

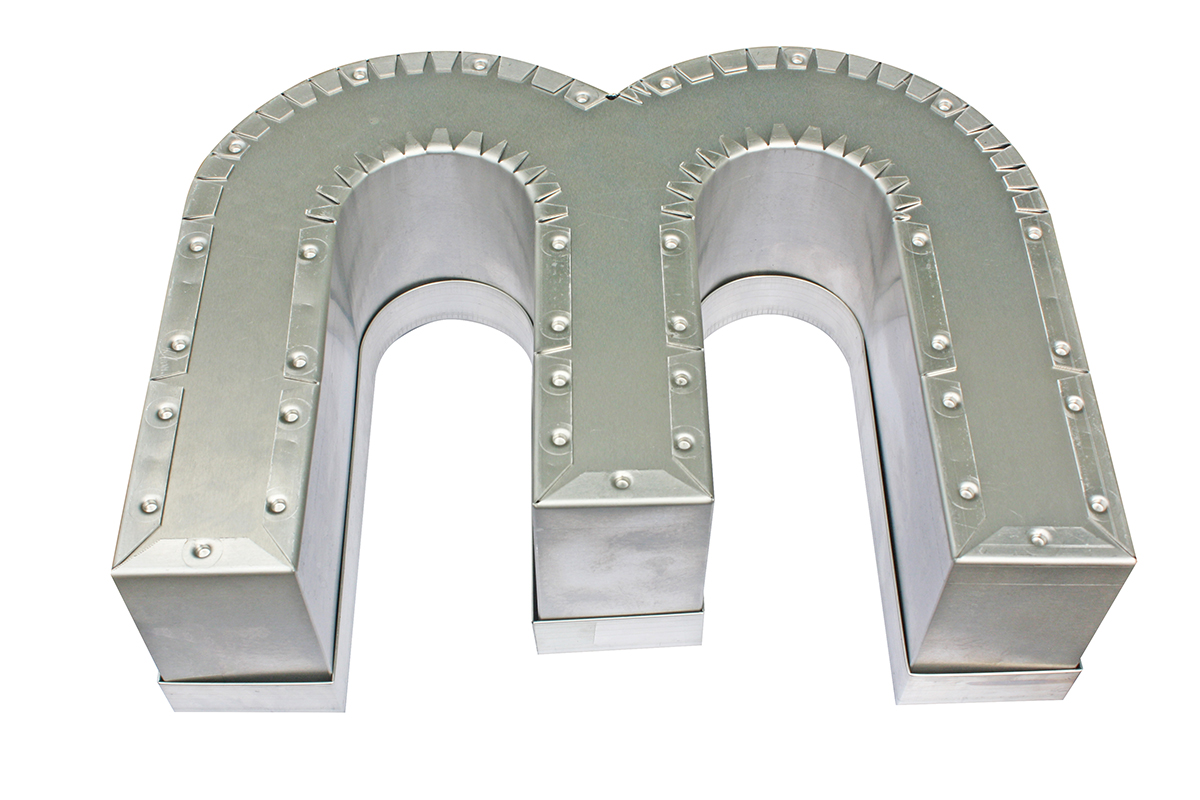

• Ezletter Clincher is particularly designed for fastening the letter returns and letter backs. It uses newest technique power to connect metals without drilling, spot welding and riveting . It's ease-to-use and effective, it can also save power and time. Ezletter Clincher will greatly reduce your channel letter fastening costs and help you outperform the competition with high quality products.

• Use the pneumohydraulic increasing-pressure cylinder and powered by compress air.

2.Frame with high rigidness and strength.

3.Arrive to the press travels rapidly, no impulsion and no noise.

4.The toolings are made by mold steel form Japan.

Working Travels: 70mm, Press travel: 20mm

Throat:               700mm

Capability max:    2.0mm Aluminum sheet

Air pressure:       5～6kg

Table Size:          700mm x 800mm

Adjustable worktable:0～300mm

Weight:             750 KG

Power :220V, single phase or 3phase 50 or 60 HZ, 15 Amp

Air 90psi (6 bar) at 1cfm
