Ezbender-C is suit for make channel letter with stainless steel , Galvanized steel and  aluminum coils. It has the functions of automatic feeding, automatic grooving, automatic bending, etc. It can also make channel letter without flange and notch use aluminum coils. All actions are automatically controlled by the computer, forming at one time. It is suitable to make 3D signs with stainless steel , Galvanized steel ,and it suitable to make resin 3D signs, borderless signs, super signs, landscape signs and other 3D signs.

Product Inquiry
Product summary

        Ezbender-C is suit for make channel letter with stainless steel , Galvanized steel and  aluminum coils. It has the functions of automatic feeding, automatic grooving, automatic bending, etc. It can also make channel letter without flange and notch use aluminum coils. All actions are automatically controlled by the computer, forming at one time. It is suitable to make 3D signs with stainless steel , Galvanized steel ,and it suitable to make resin 3D signs, borderless signs, super signs, landscape signs and other 3D signs.

Functional comparison

Function of Ezbender-C

1.Flattening and feeding material automatic,The encoder feedback system is adopted for more accurate on feeding material;
2. Make v-slot at the straight corner, it will more beautiful make v-slot before bending;
3.The depth can adjust according the material's thickness;
4.Can bending and rounding automatic according the vectorgraph;
5.Can break automatic at the cutting position;
6.The accuracy of v-slot depth:+/-0.02mm;
7.Can select the function that the customer needed, and shielding unwanted functions;
8.Special material rack;
9.Add the one key expansion function for the surrounding edges of landscape signs, bevel signs, curved signs and special-shaped signs。

Functional comparison

Model Notch  Flange  V-slot  Bend Cut Material's thickness(mm) Material's width(mm)
 EZBENDER-CLASSIC

Notch at bottom

 √  √  √

√

AL:0.4-1.2

20-180

 ×

×

 √  √  √

SS/GS:0.4-1.2

AL:0.4-2.0

 20-180
 EZBENDER-C  ×  ×  √  √  √  0.4-1.2  20-150
 EZBENDER-H  ×  ×  √  √

√

SS/GS:0.4-1.2

AL:0.4-2.0

 20-400
 EZBENDER-X  ×  ×  √

√

 √

SS/GS:0.4-1.0

AL/AL profile:0.4-1.2

 20-110
Standard configuration
Mechanical part
1.Weld frame with steel plate, and the table make with 10mm super plane aluminum plate;
2.Adopt universal heavy foundation which is easy to move;
3.The coil material rack adopts self rotating design, and the material rack table top is made of ultra flat aluminum plate;
Electrical part
1.Adopt Imported flexible cables;
2.Other components in the electric cabinet are imported brands such as ABB, FENDER, WAGO, etc;
3.The imported servo motor and drive are adopted, which saves more space and has more stable performance. The power of the servo motor in the bending part is twice that of the ordinary bending machine, which is powerful and fast;
Control system
1.Adopt EZletter software that Independent research and development, Own intellectual property rights. Can customized according customer's requirements.
2.The operation is simple. As long as the finished DXF file is imported into the EasyWord software, the EasyWord software will automatically calculate the position to be grooved and bent and the angle to be bent, and then automatically process.
3.The software can be compatible with a variety of design software(coreldraw、type3、Flixsign、artcam etc.)
4.The newest system is adpted network to communcate,more stable and convenient.
Technical service
1. One year warranty for the whole machine( spare parts not include).
2.Train by experienced engineer.
3.Chinese and English operation interface, easy to learn and use.
Specification parameters
Material parameters
Material's width(mm):  20-150
Material's thickness(mm):  SS/GS:0.4-1.0;AL:0.4-1.2
Applicable materials: SS/GS/AL/Coper
Bending parameters
Maximum bend angle 120°
Minimum Rounding Radius R10
Minimum radius of semicircle R6
Machine size and weight
Package size(mm) 1600(L)*1000(W)*1700(H)
Installation dimensions(mm) 1600(L)*1000(W)*1700(H)
Gross weight(KG) 600
Net weight(KG) 500
Electrical and air
Power 3 phase 380V 50/60HZ,15A
Compressed air 0.6Mpa

Al, Stainless steel, Galvanized steel

Installation size

cxingchicun

Model L1 L2 W H
C 1350 2800 1024 1833
Sample exhibition

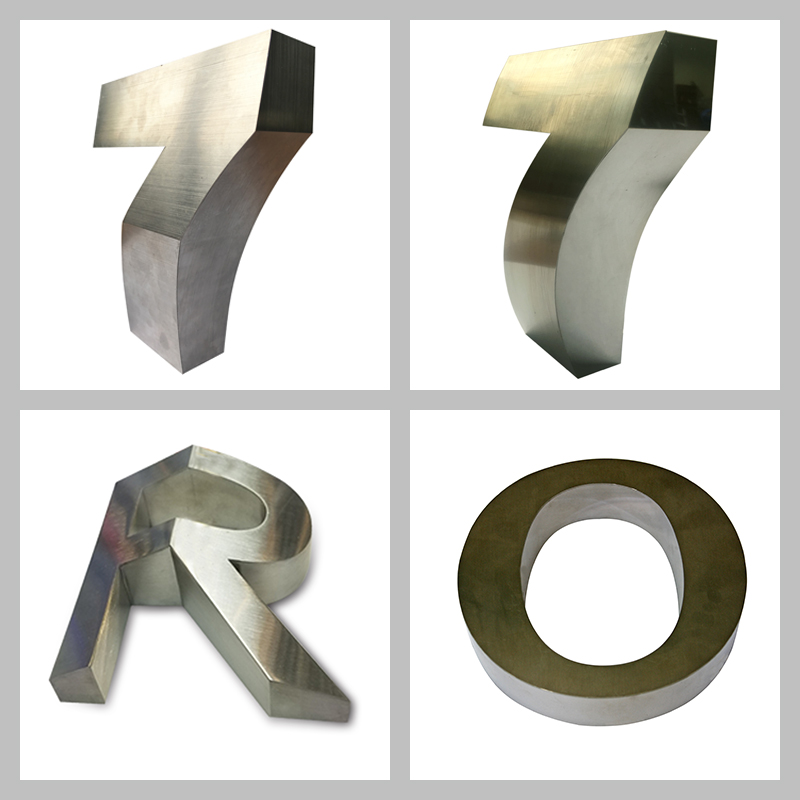

C SAMPLE3

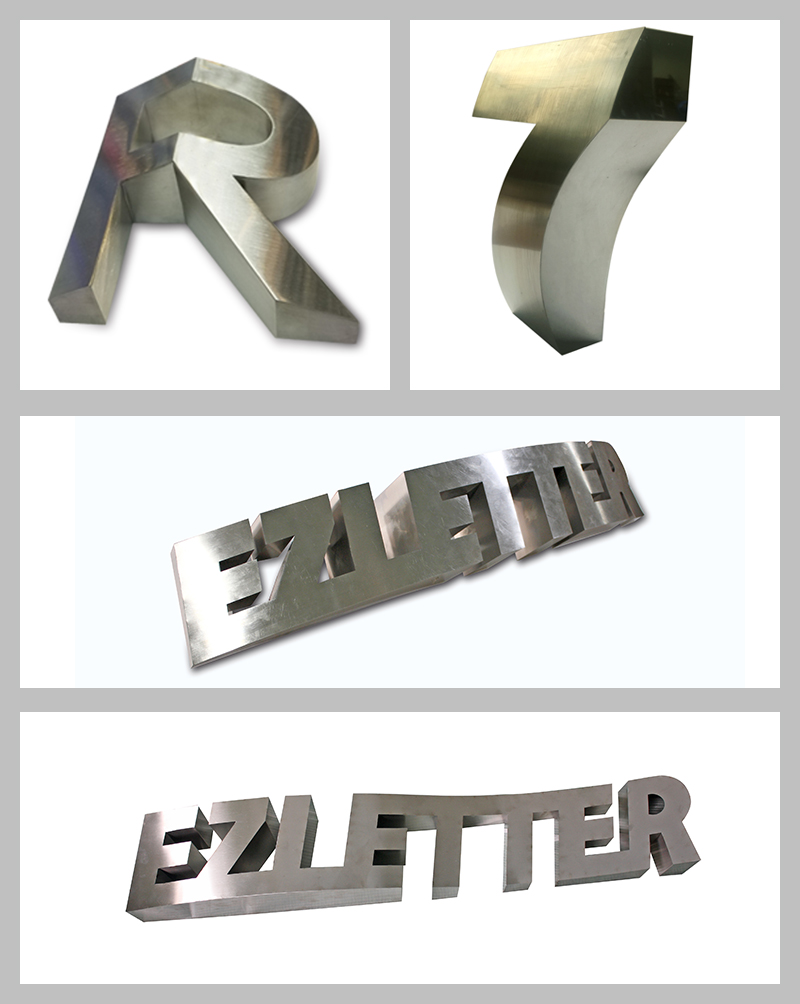

C SAMPLE4
