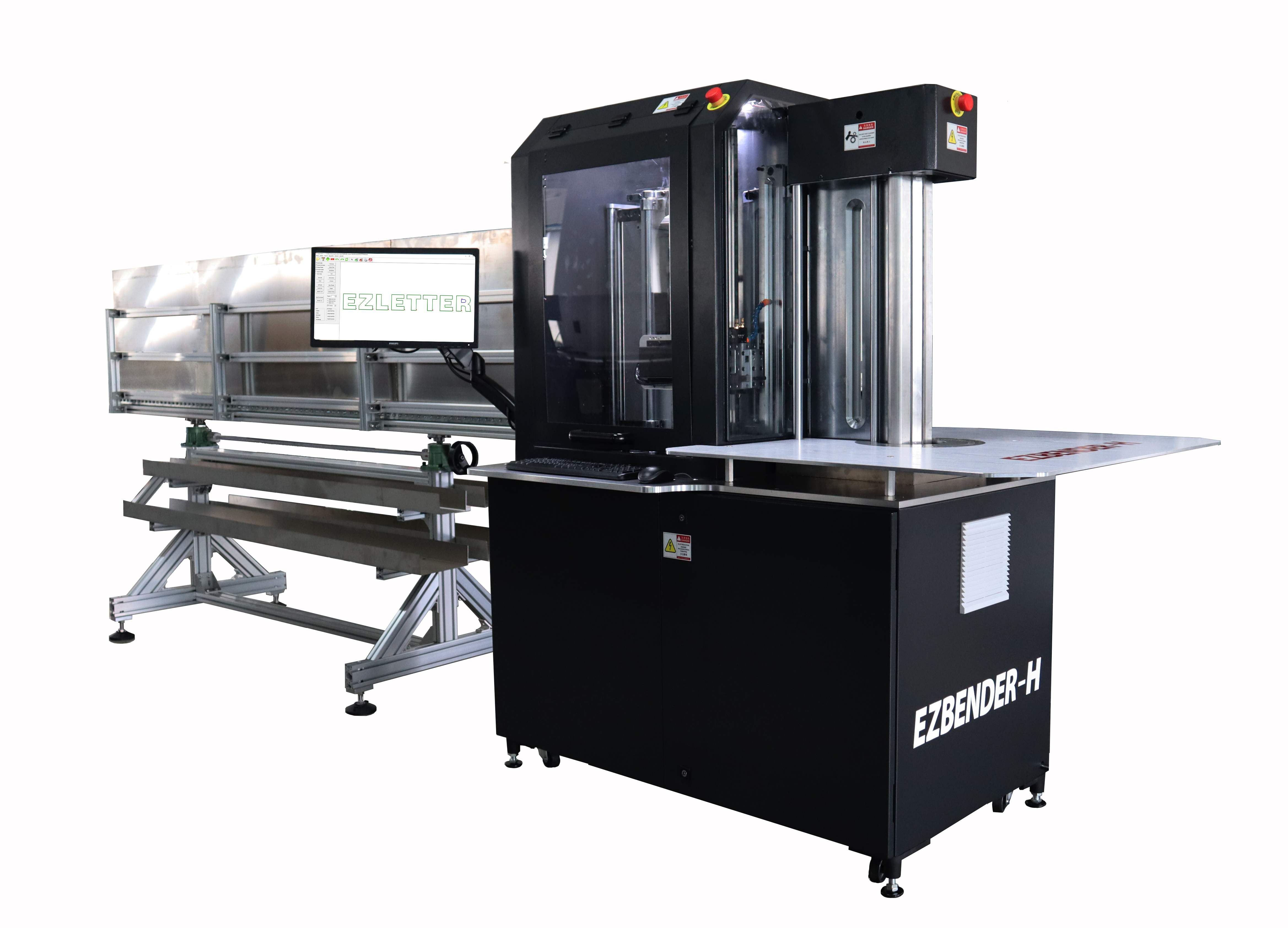

EZBENDER-H
EzBender-H is a heavier and higher CNC bending machine, which is independently developed on the basis of abundant experience of EZBender C.
Product Video
Product Inquiry
Related Products
Product summary
EzBender-H is a heavier and higher CNC bending machine, which is independently developed on the basis of abundant experience of EZBender C.
It can be used to produce channel letters with Galvanized steel, stainless steel and aluminum plate etc. It has the functions of automatic feeding, slotting and bending. The software developed by Ezletter is with high precision, high stability, free upgrade for lifelong and easy to be used. It not only has all the advantages of EZbander C, but also can processes the material as wide of 400mm maximum and 20mm minimum. With EZbender H, the upgraded software has own function that can automatically expand by one key for figure of beveled and curved surface
letters, etc. It’s a good helper for you to do all kinds of size channel letters and 3D signage.
Functional comparison
Ezbender-H Functions of CNC bending machine
| 1. Automatic leveling and feeding, using encoder feedback system, feeding more accurate； | ||||
| 2. Automatic slotting at the right angle of the straight edge, bending after opening the groove, the right angle is more straight； | ||||
| 3.The depth of slotting can be adjusted according to the thickness of the material； | ||||
| 4. It can bend and fold circle automatically according to the shape of vector diagram； | ||||
| 5. It can break off automatically at the cutting place； | ||||
| 6. Groove depth accuracy：+/-0.02mm； | ||||
| 7.According to the needs of customers, you can select the functions you need or block the functions you don't need； | ||||
| 8.Special material rack； | ||||
| 9.New landscape characters, oblique characters, curved characters, special-shaped characters around the edge of one key expansion function。 |
|
Model
|
Scissors
|
Hem
|
slotting
|
Bending
|
cut off
|
Material thickness
|
Material width
|
|
EZBENDER-Classic
|
Bottom trimming teeth
|
√
|
√
|
√
|
√
|
aluminum0.4mm-1.0mm
|
|
|
×
|
×
|
Stainless steel, galvanized sheet 0.4mm-1.2mm,Al：0.4-2.0mm
|
20mm-180mm | ||||
|
EZBENDER-C
|
×
|
×
|
√ |
√
|
√
|
Stainless steel, galvanized sheet0.4mm-1.0mm
|
20mm-150mm
|
|
EZBENDER-H
|
×
|
×
|
√ |
√
|
√
|
Aluminum coil：0.4-2.0mm
|
20mm-400mm
|
|
EZBENDER-X |
×
|
×
|
√ |
√
|
√
|
Aluminum, aluminum profiles：0.4mm-1.0mm
|
20mm-110mm
|

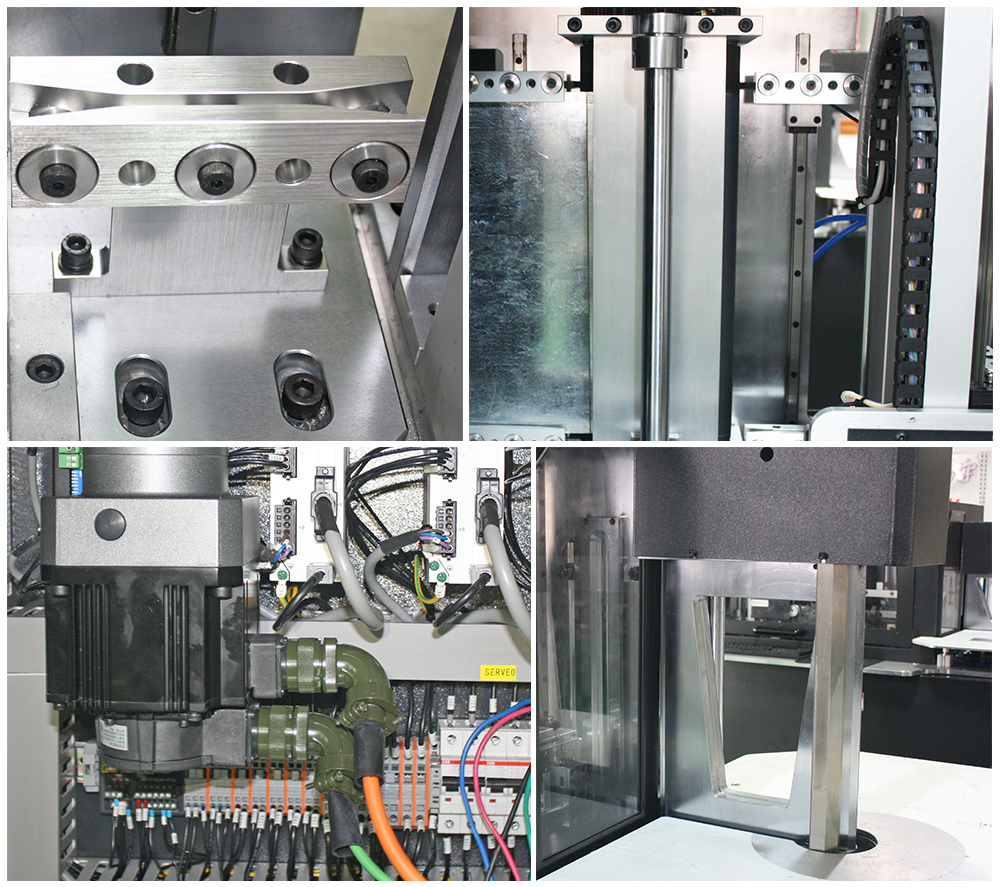

Standard configuration
Mechanical part
| 1.The frame is welded with steel plate, and the table top is made of 10 mm super plane aluminum plate； | |||||||
| 2.The foundation adopts universal heavy foundation, which is easy to move； | |||||||
| 3.The coil rack is designed by self rotation, and the top of material rack is made of ultra flat aluminum plate； | |||||||
| 4.Specially designed profile material frame for aluminum profile。 | |||||||
| Electrical part | |||||||
| 1.Imported flexible cable is adopted； | |||||||
| 2.Other components in the cabinet are imported brands such as ABB 、FENDER 、WAGO； | |||||||
| 3.Using imported servo motor and drive, more space saving, more stable performance, and bending part of the servo motor power is twice that of the ordinary bending machine, large power, fast speed； | |||||||
| Control system | |||||||
| 1.It adopts self-developed Yizi software and has its own intellectual property rights, which can be modified according to the requirements of customers。 | |||||||
| 2.The operation is simple. As long as the DXF file is imported into Yizi software, Yizi software will automatically calculate the position of slotting, bending and bending angle, and then automatically process。 | |||||||
| 3.The software can be compatible with a variety of design software (CorelDRAW, Wentai, type3, flixsign, ArtCAM, etc.)。 | |||||||
| 5.Computer direct control (the customer needs to provide a desktop computer, the display is separated from the host computer, and the main board has spare PCI slots)； | |||||||
| technical service | |||||||
| 1. The whole machine is guaranteed for one year。 | |||||||
| 2.The new machine tool is installed and trained by experienced engineers。 | |||||||
Specification parameters
| Material parameters | |
| Material width（mm）： | 20-400 |
| Material thickness（mm）： | 0.4-1.2； |
| Applicable materials： | Stainless steel, iron sheet, aluminum plate, copper plate, aluminum profile |
| Bender Capability | |
| Max Bending Angle | 120° |
| Min radius for circle | R10 |
| Min radius for half circl | R6 |
| Size & Weight | |
| Package size(mm) | 1580(L)×1040(W)×1860(H) |
| Physical layout(mm) | 3000(L)x1000(W)x1500(H) |
| Gross weight(KG) | 700 |
| Net weihth（KG) | 600 |
| Power | |
| Power | 3-phase220V380V 50/60HZ,15A |
| Compress Air | 90psi(6bar)at 1 cfm |

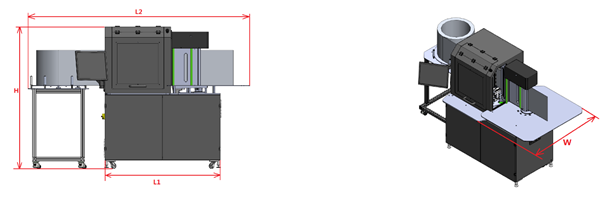

Installation dimensions
| Model | L1 | L2 | W | H |
| H400 | 1320 | 2539 | 1124 | 1625 |
| H600 | 1320 | 4709 | 1124 | 1821 |

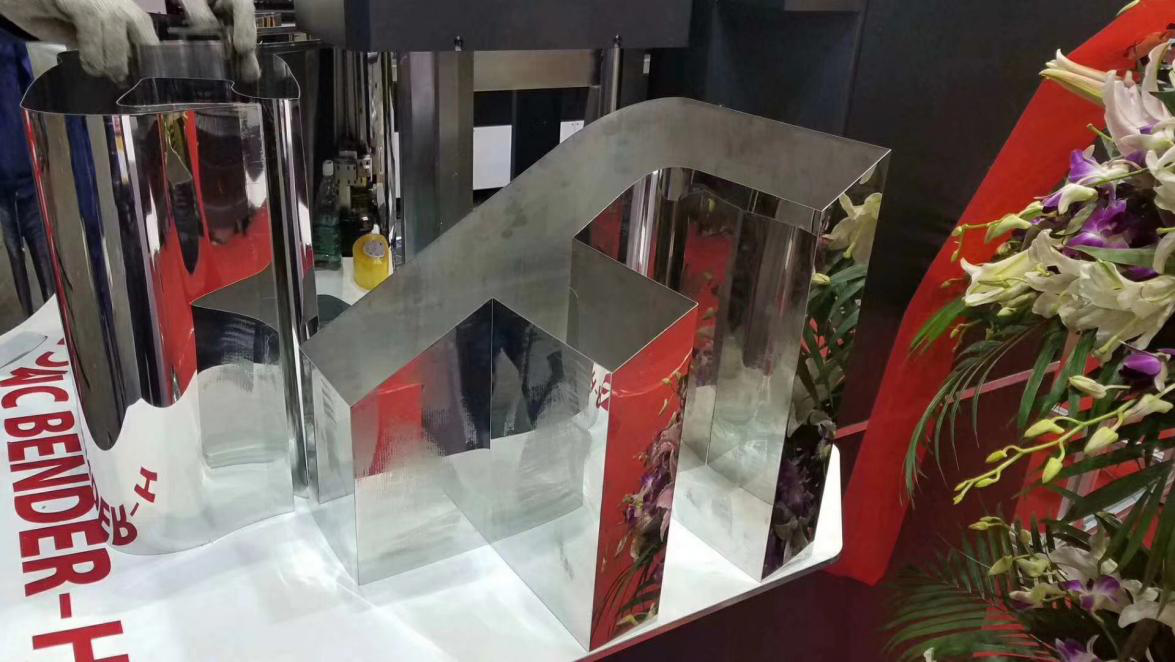

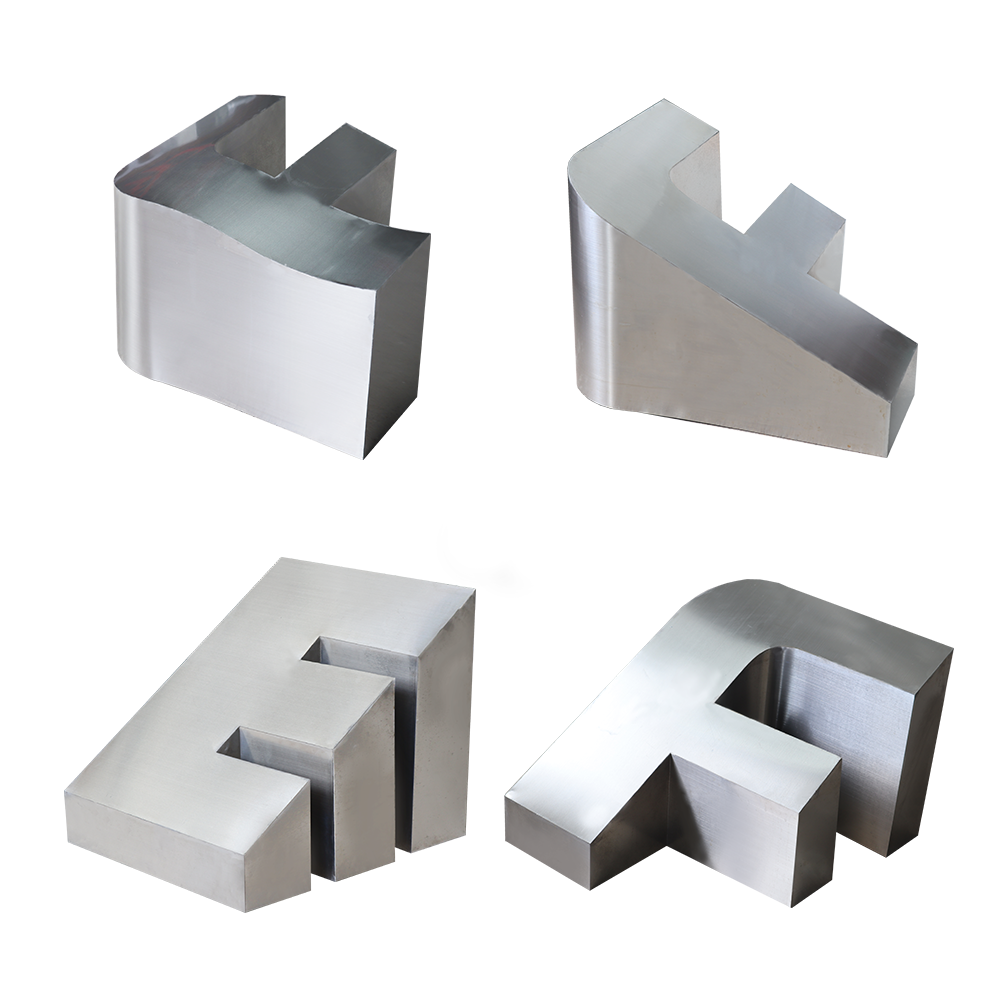

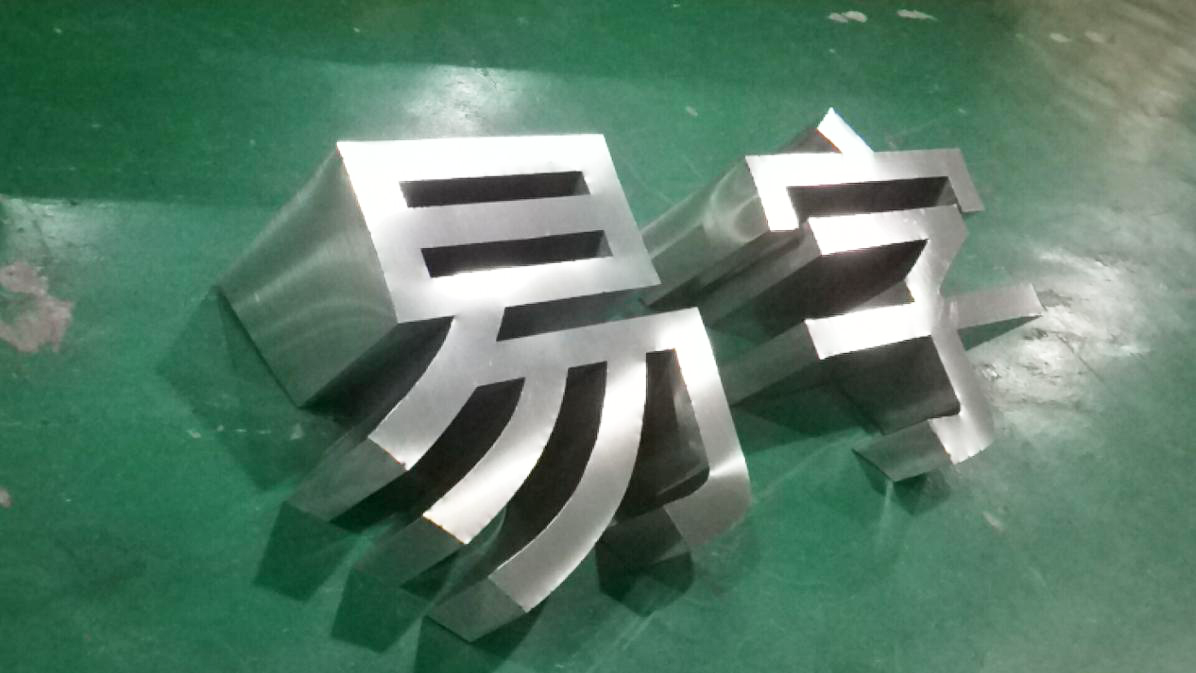

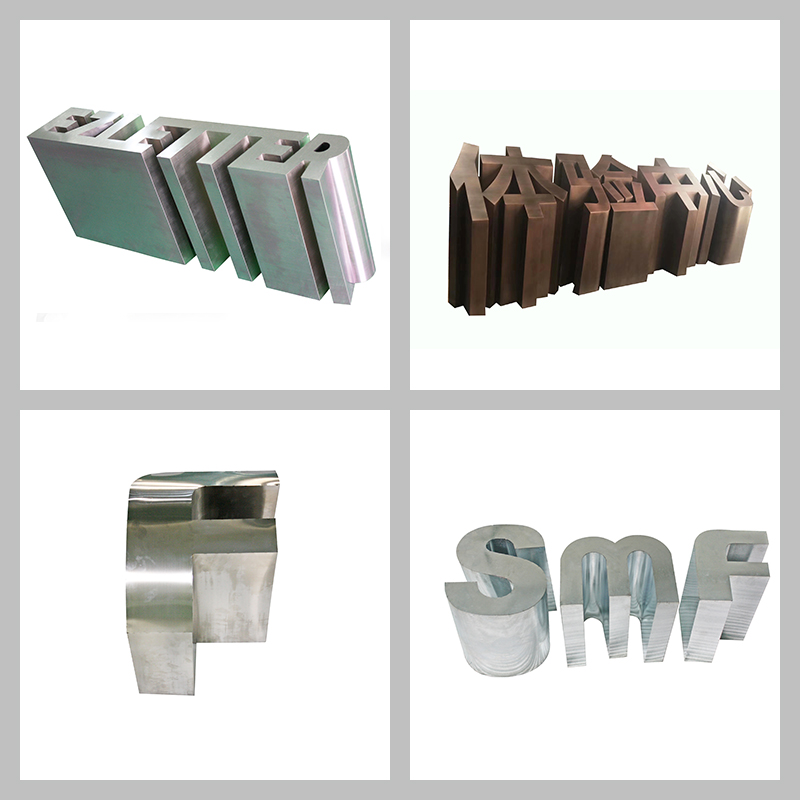

Sample exhibition
