EZBENDER-X
EzBender-X is designed especially for bending the Aluminum profiles signs. With the upgraded for the software and hardware, now it’s one model bender machine which can do with Stainless steel, Aluminum, Galvanized steel and all kinds of Al profiles.

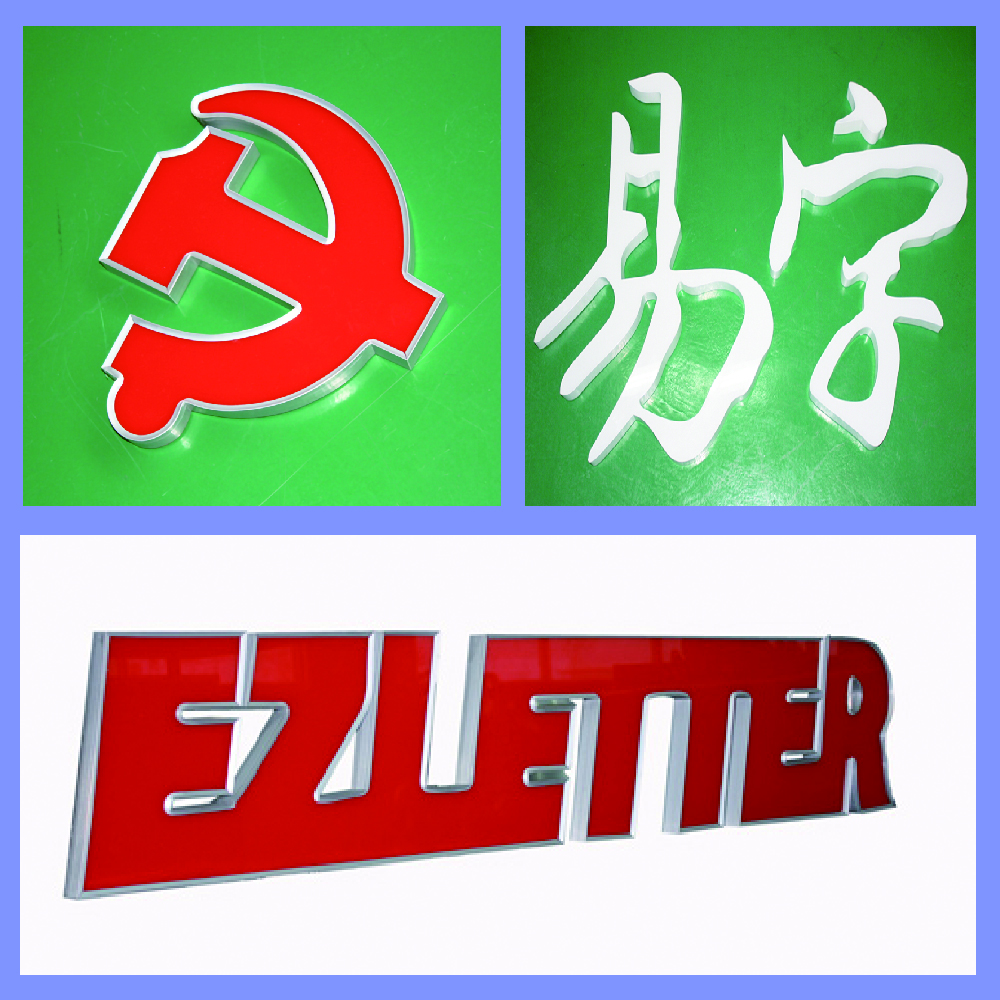

EzBender-X is designed especially for bending the Aluminum profiles signs. With the upgraded for the software and hardware, now it’s one model bender machine which can do with Stainless steel, Aluminum, Galvanized steel and all kinds of Al profiles. According to the different material, different way to make signs, Ezbender-X can provide perfect solutions. It’s your best choice for making different types of LED signs with different material.
Ezbender-X Functions of CNC bending machine
| 1. Automatic leveling and feeding, using encoder feedback system, feeding more accurate； | ||||
| 2. Automatic slotting at the right angle of the straight edge, bending after opening the groove, the right angle is more straight； | ||||
| 3. The depth of slotting can be adjusted according to the thickness of the material； | ||||
| 4. It can bend and fold circle automatically according to the shape of vector diagram； | ||||
| 5. It can break off automatically at the cutting place； | ||||
| 6. Groove depth accuracy：+/-0.02mm； | ||||
| 7.According to the needs of customers, you can select the functions you need or block the functions you don't need； | ||||
| 8.Special material rack (one for aluminum profile and one for coil material)； | ||||
|
9.According to different materials or different signboards, four kinds of manufacturing processes are provided： |
||||
|

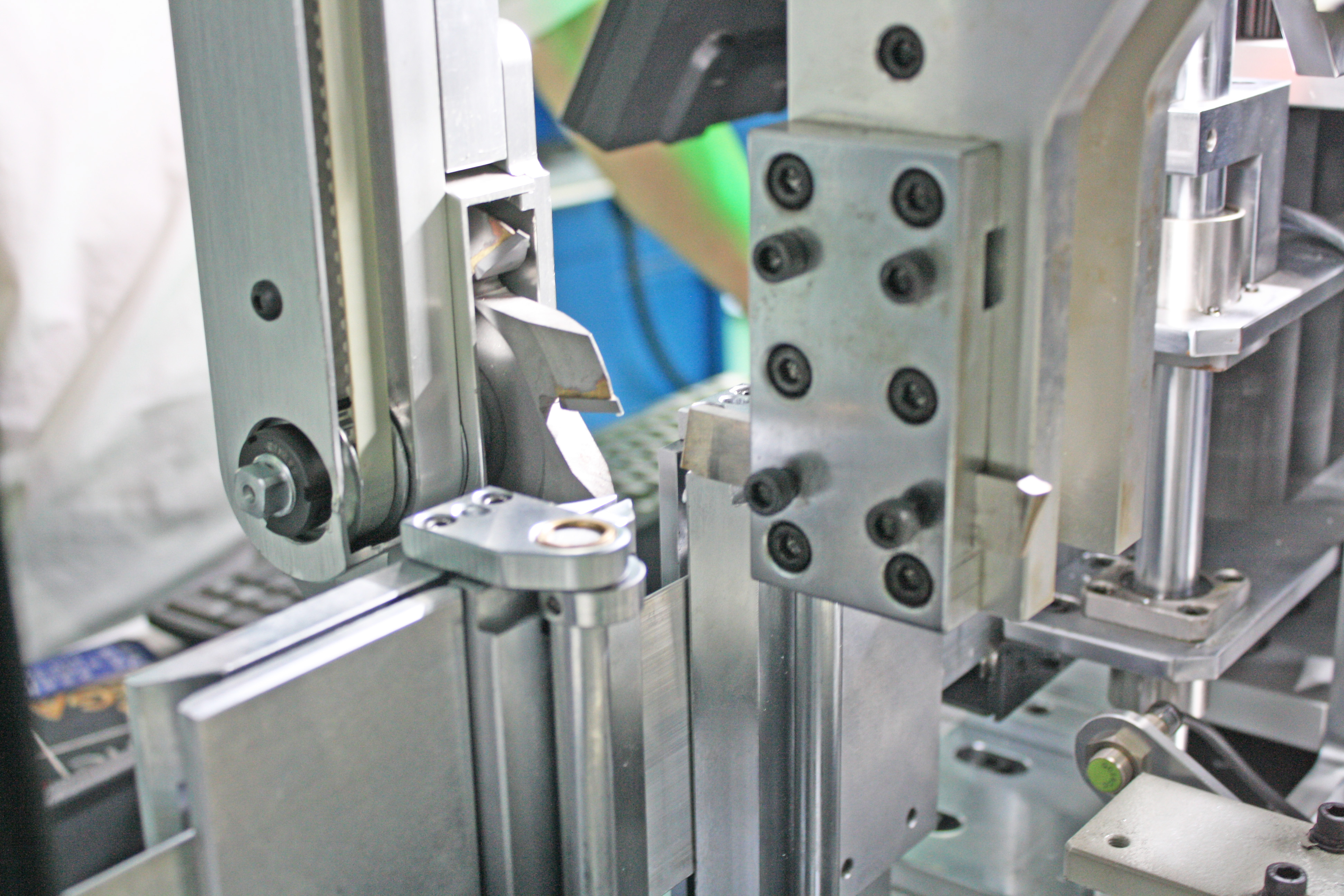

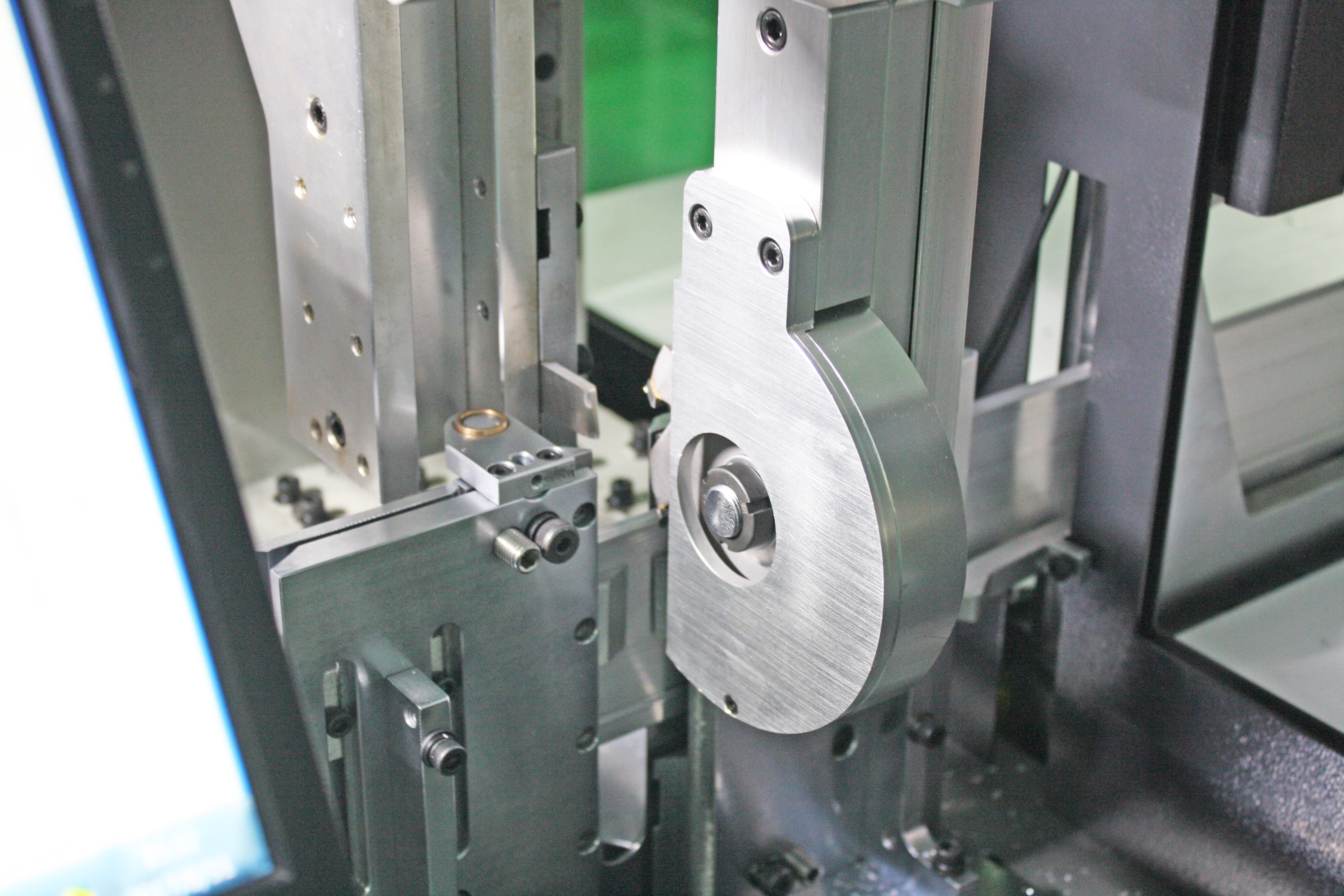

1）Slotting in front of disc cutter: Super word (aluminum profile）； 2）Straight knife slotting: stainless steel, galvanized sheet, aluminum coil）； 3）Slotting on both sides of disc cutter: relatively thick aluminum profiles such as McDonald's； 4）Slotting in front of disc cutter and back of linear cutter: aluminum profile within 1.2mm。 |
||||
| 10.New addition of landscape characters, oblique characters, curved characters, special-shaped characters around the edge of the expansion function。 |
Functional comparison
|
Model
|
Scissors
|
Hem
|
slotting
|
Bending
|
cut off
|
Material thickness
|
Material width
|
|
EZBENDER-Classic
|
Bottom trimming teeth
|
√
|
√
|
√
|
√
|
Aluminum0.4mm-1.0mm
|
|
|
×
|
×
|
Stainless steel, galvanized sheet0.4mm-1.2mm,：Aluminum0.4-2.0mm
|
20mm-180mm | ||||
|
EZBENDER-C
|
×
|
×
|
√ |
√
|
√
|
Stainless steel, galvanized sheet0.4mm-1.0mm
|
20mm-150mm
|
|
EZBENDER-H
|
×
|
×
|
√ |
√
|
√
|
Aluminum coil：0.4-2.0mm
|
20mm-400mm
|
|
EZBENDER-X |
×
|
×
|
√ |
√
|
√
|
Aluminum, aluminum profiles：0.4mm-1.0mm
|
20mm-110mm
|

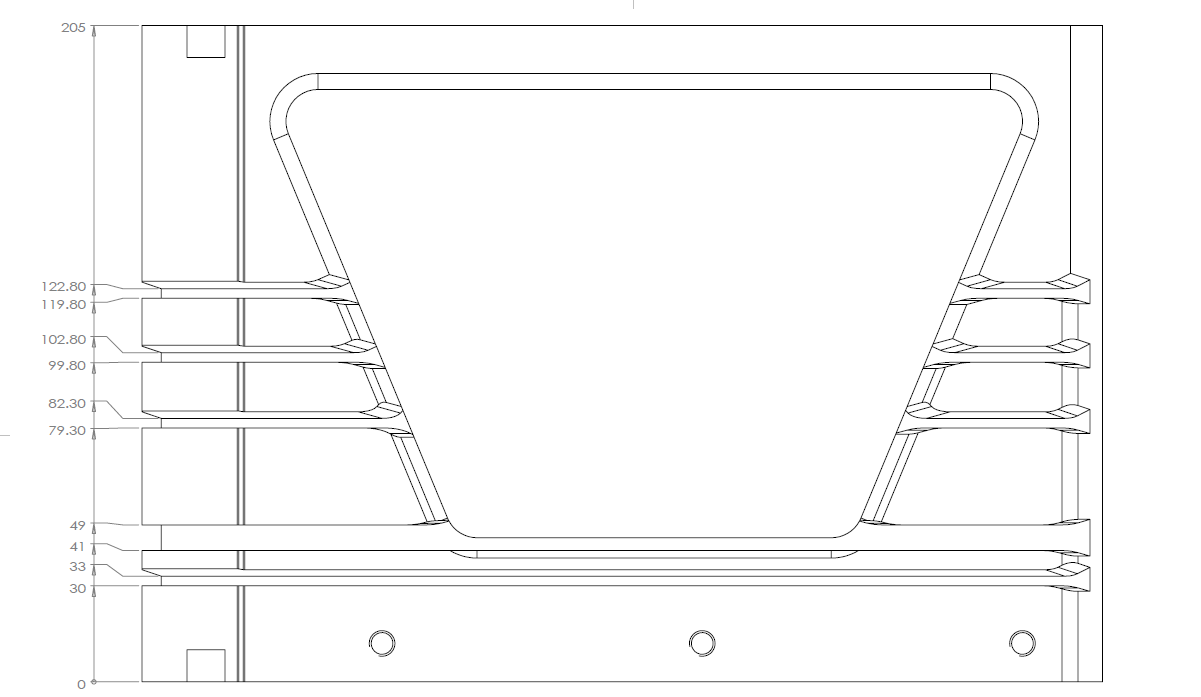

Dimension of Machinable profile for standard machine：
| Mechanical part 1.The frame is welded with steel plate, and the table top is made of 10 mm super plane aluminum plate 2.The foundation adopts universal heavy foundation, which is easy to move； 3.The coil rack is designed by self rotation, and the top of material rack is made of ultra flat aluminum plate; |
| Electrical part 1.Imported flexible cable is adopted； 2.Other components in the cabinet are imported brands such as ABB 、FENDER 、WAGO 3.Using imported servo motor and drive, more space saving, more stable performance, and bending part of the servo motor power is twice that of the ordinary bending machine, large power, fast speed； |
| Control system 1.It adopts self-developed Yizi software and has its own intellectual property rights, which can be modified according to the requirements of customers。 2.2.The operation is simple. As long as the DXF file is imported into Yizi software, Yizi software will automatically calculate the position of slotting, bending and bending angle, and then automatically process。 3.The software can be compatible with a variety of design software (CorelDRAW, Wentai, type3, flixsign, ArtCAM, etc.)。 4..Computer direct control (the customer needs to provide a desktop computer, the display is separated from the host computer, and the main board has spare PCI slots)； |
| Technical service 1.The whole machine is guaranteed for one year。 2.The new machine tool is installed and trained by real experienced engineers。 3.Chinese and English operation interface, easy to learn and use。 |
| Material parameters | |
| Material width（mm）： | 20-110 |
| Meterial thickness（mm）： | 0.4-1.0； |
| Applicable materials： | Stainless steel, iron sheet, aluminum plate, copper plate, aluminum profile (edge groove can be customized according to customer requirements) |
| Bender Capability | |
| Max Bending Angle | 120° |
| Min radius for circle | R10 |
| Min radius for half circle | R6 |
| Size & Weight | |
| Package size(mm) | 2020(L)x1000(W)x1820(H) |
| Physical layout(mm) | 4900(L)x1000(W)x1500(H) |
| Gross weight(KG) | 600 |
| Net weight（KG) | 500 |
| Power | |
| Power | single-phase/3-phase 220V 50/60HZ,15A |
| Compress Air | 0.6-0.8Mpa |

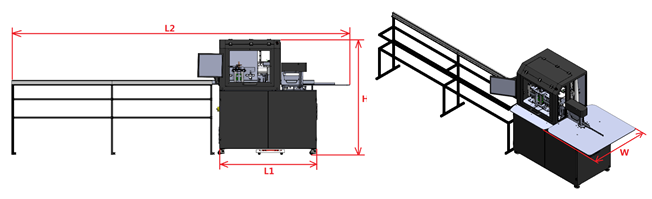

| Model | L1 | L2 | W | H |
| EZBENDER-X | 1350 | 4703 | 938 | 1598 |
