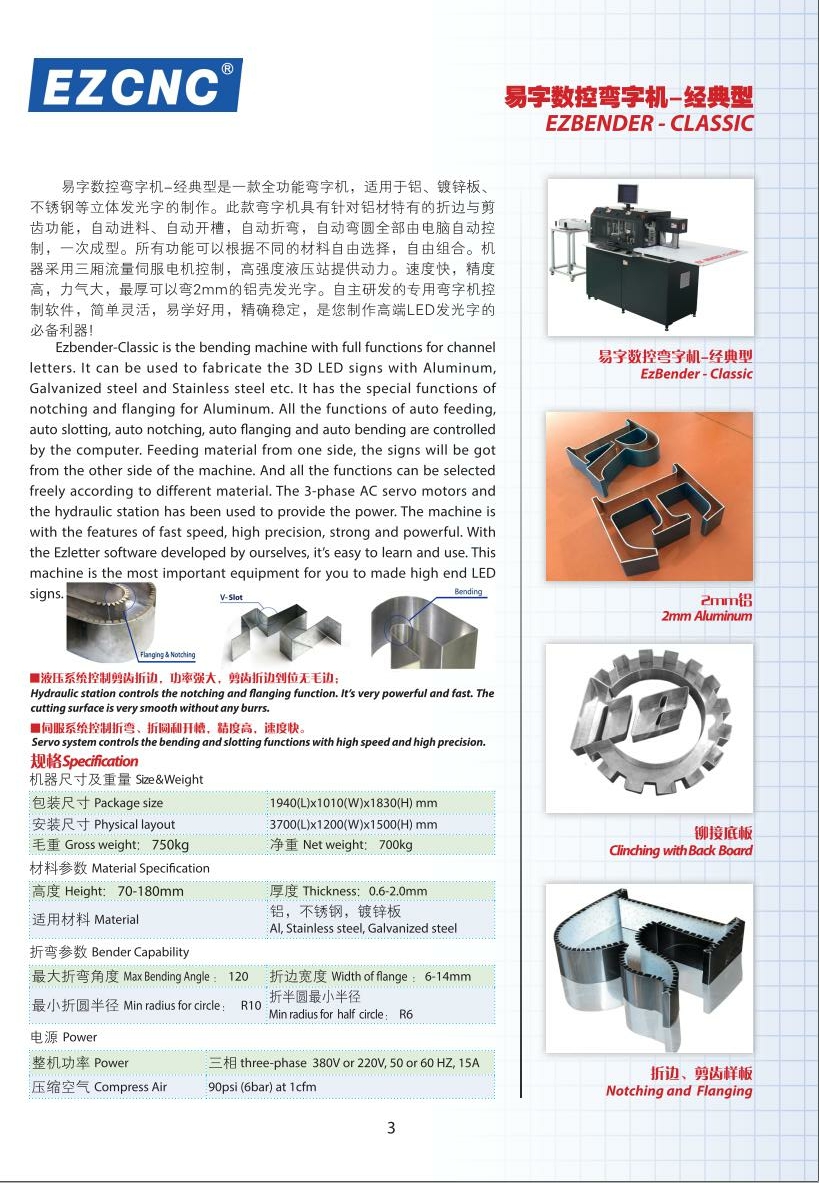

EZBENDER-CLASSIC

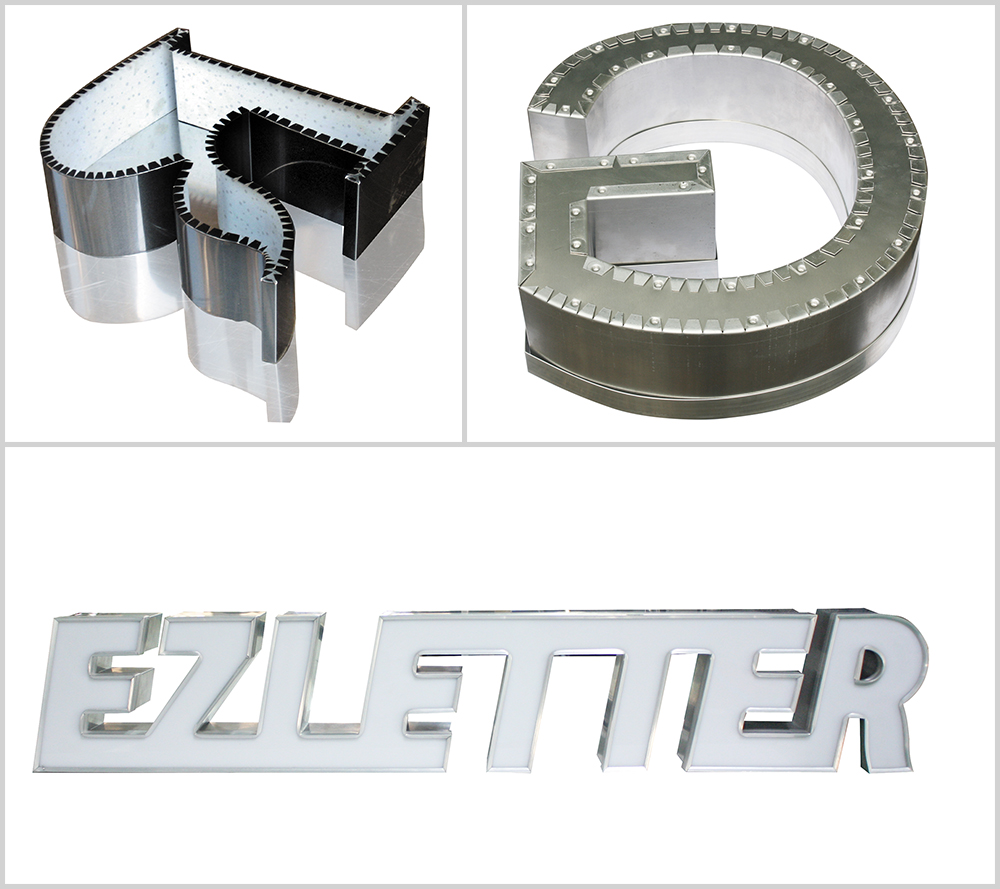

Ezbender-Classic is the bending machine with full functions for channel letters. It can be used to fabricate the 3D LED signs with Aluminum, Galvanized steel and Stainless steel etc. It has the special functions of notching and flanging for Aluminum. All the functions of auto feeding, auto slotting, auto notching, auto flanging and auto bending are controlled by the computer.Feeding material from one side, the signs will be got from the other side of the machine.
Ezbender-Classic is the bending machine with full functions for channel letters. It can be used to fabricate the 3D LED signs with Aluminum, Galvanized steel and Stainless steel etc. It has the special functions of notching and flanging for Aluminum. All the functions of auto feeding, auto slotting, auto notching, auto flanging and auto bending are controlled by the computer. Feeding material from one side, the signs will be got from the other side of the machine. And all the functions can be selected freely according to different material. The 3-phase AC servo motors and the hydraulic station has been used to provide the power. The machine is with the features of fast speed, high precision, strong and powerful. With the Ezletter software developed by ourselves, it’s easy to learn and use. This machine is the most important equipment for you to made high end LED signs.
EZBENDER-CLASSIC equipment function
| 1. Automatic leveling and feeding, using encoder feedback system, feeding more accurate； | ||||
| 2. Automatic slotting at the right angle of the straight edge, bending after opening the groove, the right angle is more straight； | ||||
| 3. The depth of slotting can be adjusted according to the thickness of the material； | ||||
| 4. It can bend and fold circle automatically according to the shape of vector diagram； | ||||
| 5. It can break off automatically at the cutting place； | ||||
| 6. Groove depth accuracy：+/-0.02mm； | ||||
| 7.Slotting depth accuracy can be based on customer needs to select the required function or shield the function not needed； | ||||
| 7.Special coil material rack； | ||||
| 8.New addition of landscape characters, oblique characters, curved characters, special-shaped characters around the edge of the expansion function； | ||||
| 9.It has the function of folding and cutting teeth. It can be selected when processing aluminum coil less than 1.2mm, which is suitable for European and American production process； | ||||
| 10.The thickness of aluminum coil can be up to when the function of folding and cutting teeth is not used2mm； | ||||
| 11.The thickness of aluminum coil can reach all the functions when the function of folding and cutting teeth is not used, which can be freely selected and combined according to different materials。 |
| Model | Notch | Flang | slotting | Bending | cut | Material thickness（mm) | Material width(mm) |
| EZBENDER-CLASSIC |

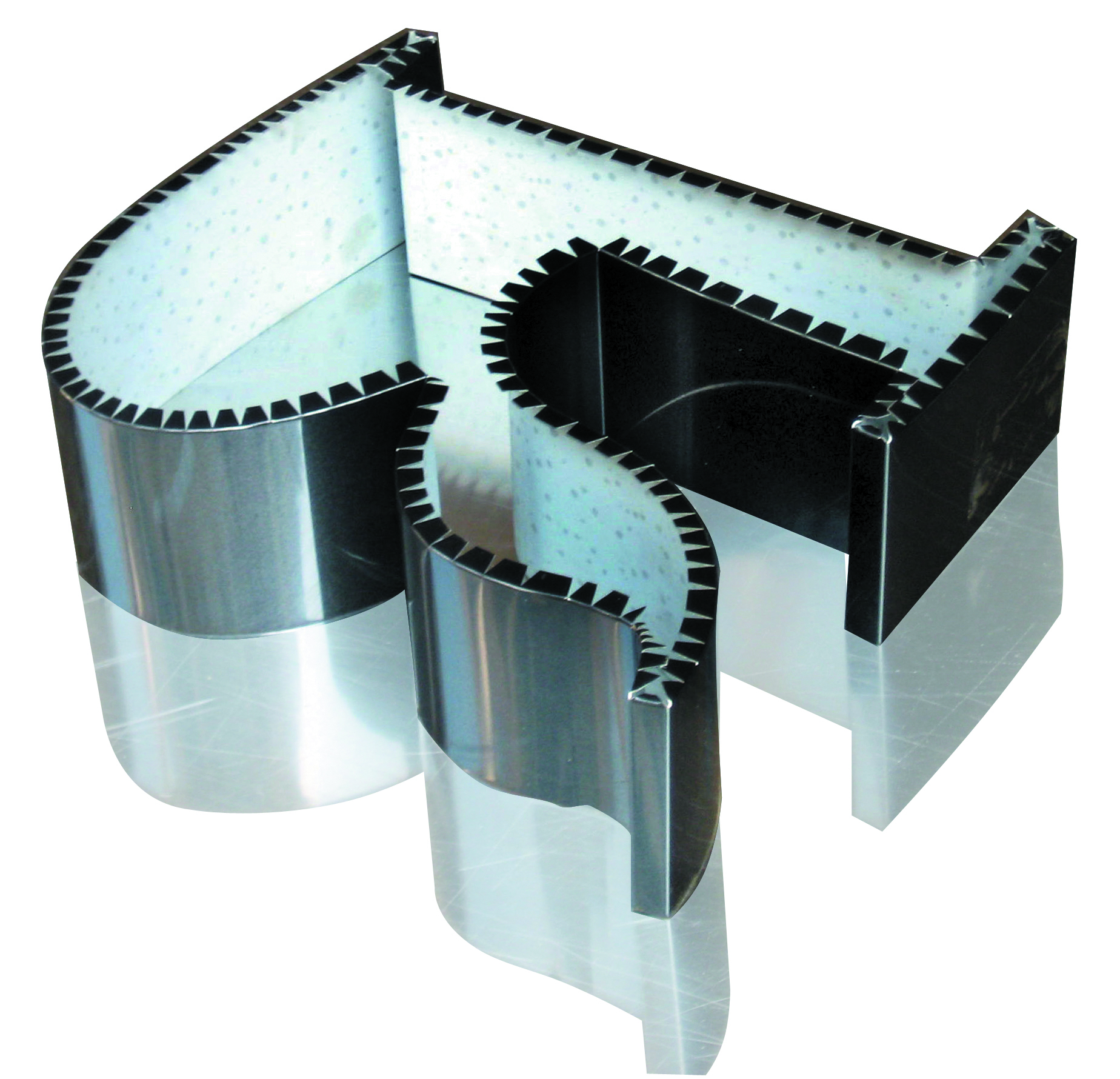

Notch at Bottom |
√ | √ | √ |
√ |
Aluminum coil：0.4-1.2 |
20-180 |
| × |
× |
√ | √ | √ |
Stainless steel, iron sheet：0.4-1.2 Aluminum coil：0.4-2.0 |
20-180 | |
| EZBENDER-C | × | × | √ | √ | √ | 0.4-1.2 | 20-150 |
| EZBENDER-H | × | × | √ | √ |
√ |
Stainless steel, iron sheet：0.4-1.2 Aluminum coil：0.4-2.0 |
20-400 |
| EZBENDER-X | × | × | √ |
√ |
√ |
Stainless steel, iron sheet：0.4-1.0 Aluminum, aluminum profiles：0.4-1.2 |
20-110 |
| Mechanical part 1.The frame is welded with steel plate, and the table top is made of 10 mm super plane aluminum plate； 2.The foundation adopts universal heavy foundation, which is easy to move； 3.The material rack is designed by self rotation, and the table surface is made of ultra flat aluminum plate。 |

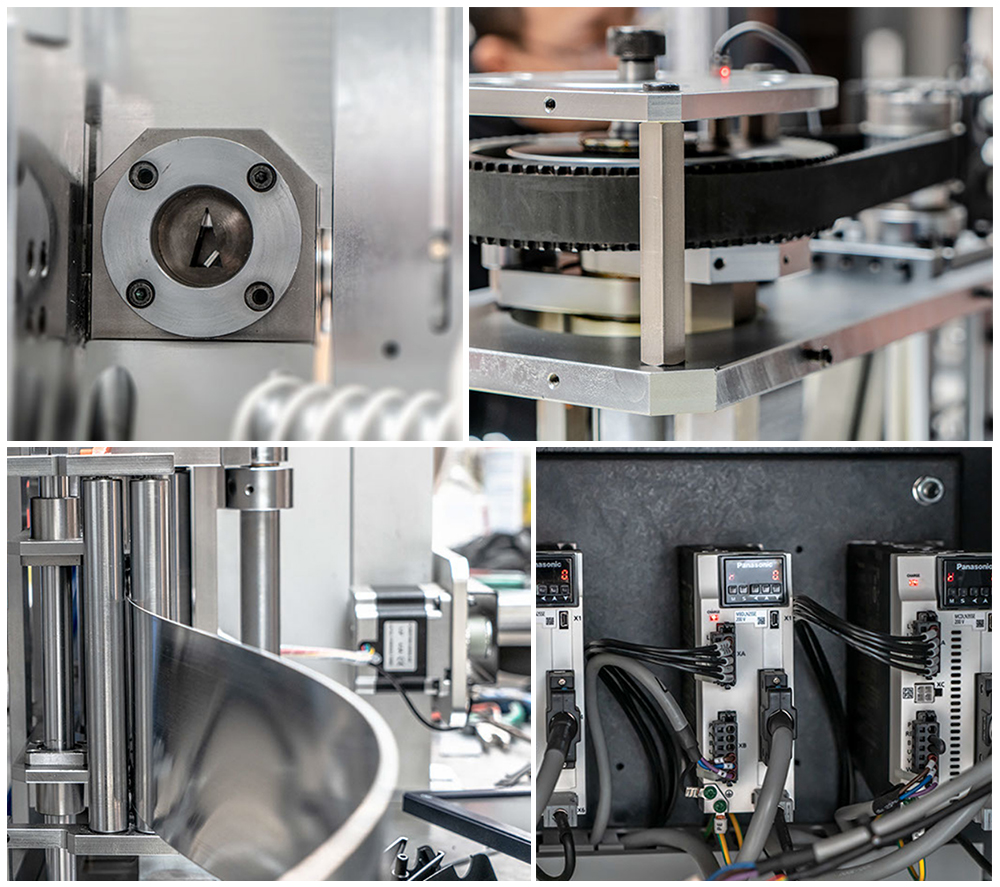

| Electrical part 1.Imported flexible cable is adopted； 2.Other components in the cabinet are imported brands such asABB 、FENDER 、WAGO 3.Using imported servo motor and drive, more space saving, more stable performance, and bending part of the servo motor power is twice that of the ordinary bending machine, large power, fast speed； |
| Control system 1.It adopts self-developed Yizi software and has its own intellectual property rights, which can be modified according to the requirements of customers。 2.The operation is simple. As long as the DXF file is imported into Yizi software, Yizi software will automatically calculate the position of slotting, bending and bending angle, and then automatically process。 3.The software can be compatible with a variety of design software (CorelDRAW, Wentai, type3, flixsign, ArtCAM, etc.)。 5.Computer direct control (the customer needs to provide a desktop computer, the monitor is separated from the host computer, and the main board has a spare PCI slotComputer direct control (the customer needs to provide a desktop computer, the monitor is separated from the host computer, and the main board has a spare PCI slot）； |
| Hydraulic system Frequency conversion hydraulic system, stable pressure, environmental protection and energy saving； |
| technical service 1. Can be door-to-door installation training, the whole machine provides a year of warranty。 2.The new machine tool is installed and trained by experienced engineers。 3.Chinese and English operation interface, easy to learn and use。 |
| Material Specification | |
| Material width（mm）： | 20-180 |
| Material thickness（mm）： | Cutting teeth without folding：Stainless steel, iron sheet：0.4-1.0；copper plate：0.4-2.0 |
| Material Specification： | Stainless steel, iron sheet, aluminum plate, copper plate |
| Bender Capability | |
| Max Bending Angle | 120° |
| Width of flange | 6-14mm |
| Min radius for circle | R10 |
| Min radius for half circle | R6 |
| Size&Weight | |
| Package size(mm) | 2030(L)*1030(W)*1820(H) |
| Physical layout(mm) | 3700(L)*1200(W)*1500(H) |
| Gross weigth(KG) | 750 |
| Net weight（KG) | 700 |
| Power | |
| Power | three/phase 220V或380V， 50/60HZ,15A |
| Compress Air | 0.6-0.8Mpa |
| Model | L1 | L2 | W | H |
| CLASSIC | 1780 | 2924 | 1070 | 1525 |
